Description
dunlop mxr pedals Dunlop MXR M234 Analog Chorus Guitar Effects Pedal – Tegeler MusicMXR ANALOG CHORUS M234 The Analog Chorus creates classically lush, liquid textures with Rate, Level, Depth, High, and Low controls for superior control over your sound. This pedal can be powered by a 9 volt battery, a Dunlop ECB003 9 volt adapter, or the DC Brick, Iso Brick, and Mini Iso Brick power supplies (not included). M234 ANALOG CHORUS DESCRIPTION Analog bucket brigade technology Small footprint saves pedalboard space HIGH and LOW cut controls
MXR® ANALOG CHORUS
The Analog Chorus creates classically lush, liquid textures with Rate, Level, Depth, High, and Low controls for superior control over your sound.
This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).
M234 ANALOG CHORUS
DESCRIPTION
• Analog bucket- brigade technology
• Small footprint saves pedalboard space
• HIGH and LOW cut controls for detailed tone sculpting

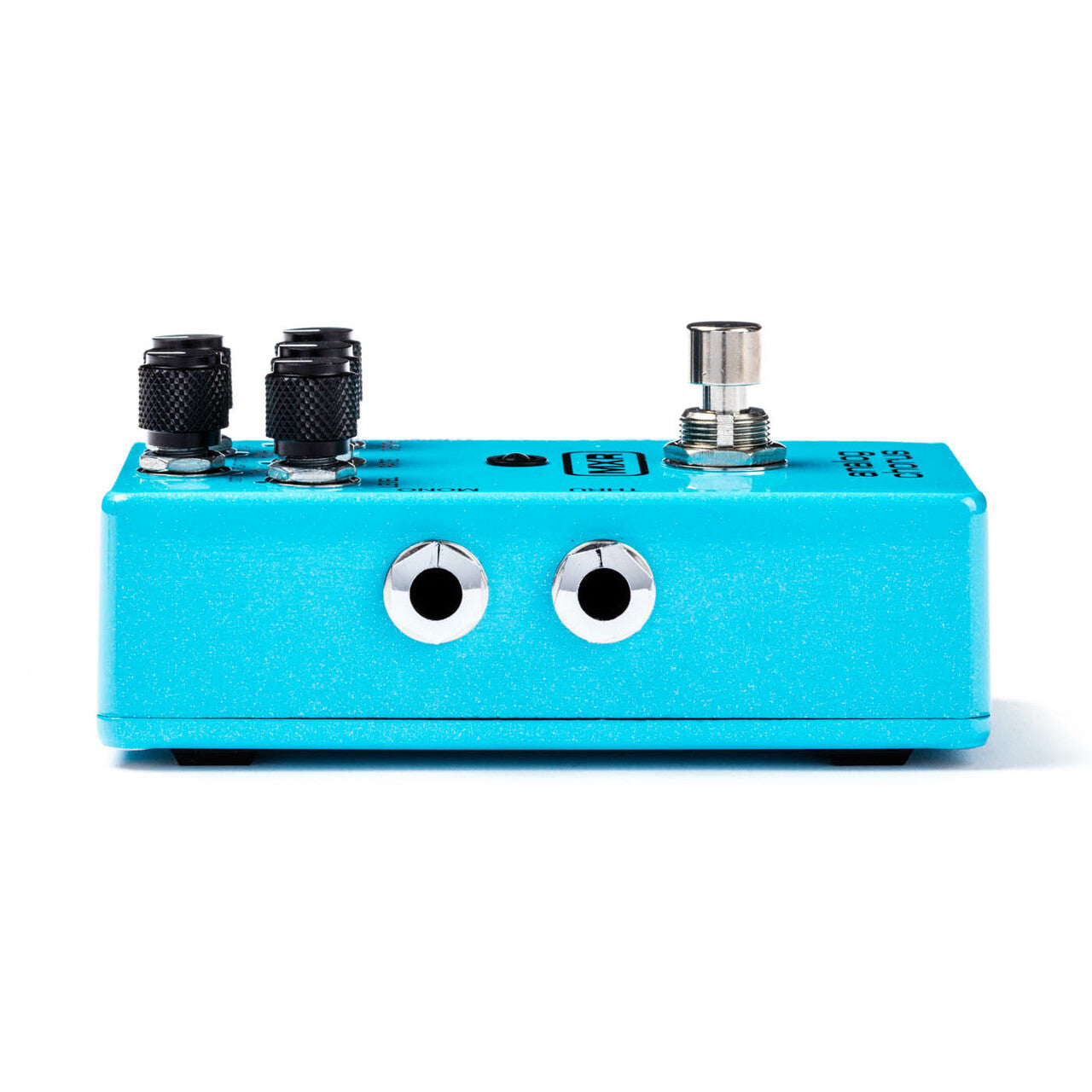

• Two outputs for a wide and sweeping stereo spread
CONTROLS
LOW knob controls amount
of low frequency cut
HIGH knob controls amount
of high frequency cut
LEVEL knob controls
overall effect volume
RATE knob controls speed
of chorus effect
DEPTH knob controls overall
intensity of chorus effect
THRU OUTPUT jack engages
stereo mode
7 FOOTSWITCH toggles effect on/
bypass (blue LED indicates on)
DIRECTIONS
• Run a cable from your guitar to the Analog Chorus’ INPUT jack and run another cable from the Analog Chorus’ Mono OUTPUT jack to your amplifier (for mono operation). Optional Stereo Mode: run an additional cable from the THRU OUTPUT jack to the input of a second amp. Using this jack automatically sends the delayed signal only to the Mono output jack when the effect is on and outputs a buffered copy of the input signal.
• Start with all controls
set to 12 o’clock.
• Turn the effect on by
depressing the footswitch.
SPECIFICATIONS
Input Impedance 1 MΩ
Output Impedance 1 kΩ
Noise Floor* Effect On -96 dBV Bypass -106 dBV
Tone Controls LOW 70 Hz to 800 Hz 12 dB/oct shelf HIGH 660 Hz to flat 6 dB/oct shelf
Bypass Buffered
Current Draw 13 mA
Power Supply 9 volts DC
*Tone controls center, all others max CW,
A-weighted
• Rotate the DEPTH knob
clockwise to increase the
intensity of the effect or
counterclockwise to decrease it.
• Rotate the RATE knob clockwise
to increase the speed of the
chorus effect or counterclockwise
to decrease it.
• Rotate the LEVEL knob clockwise
to increase overall effect volume
or counterclockwise to decrease
it.
• Rotate the LOW knob clockwise
to retain more low end or
counterclockwise to cut
more low end.
• Rotate the HIGH knob clockwise
to retain more high end or
counterclockwise to cut
more low end
